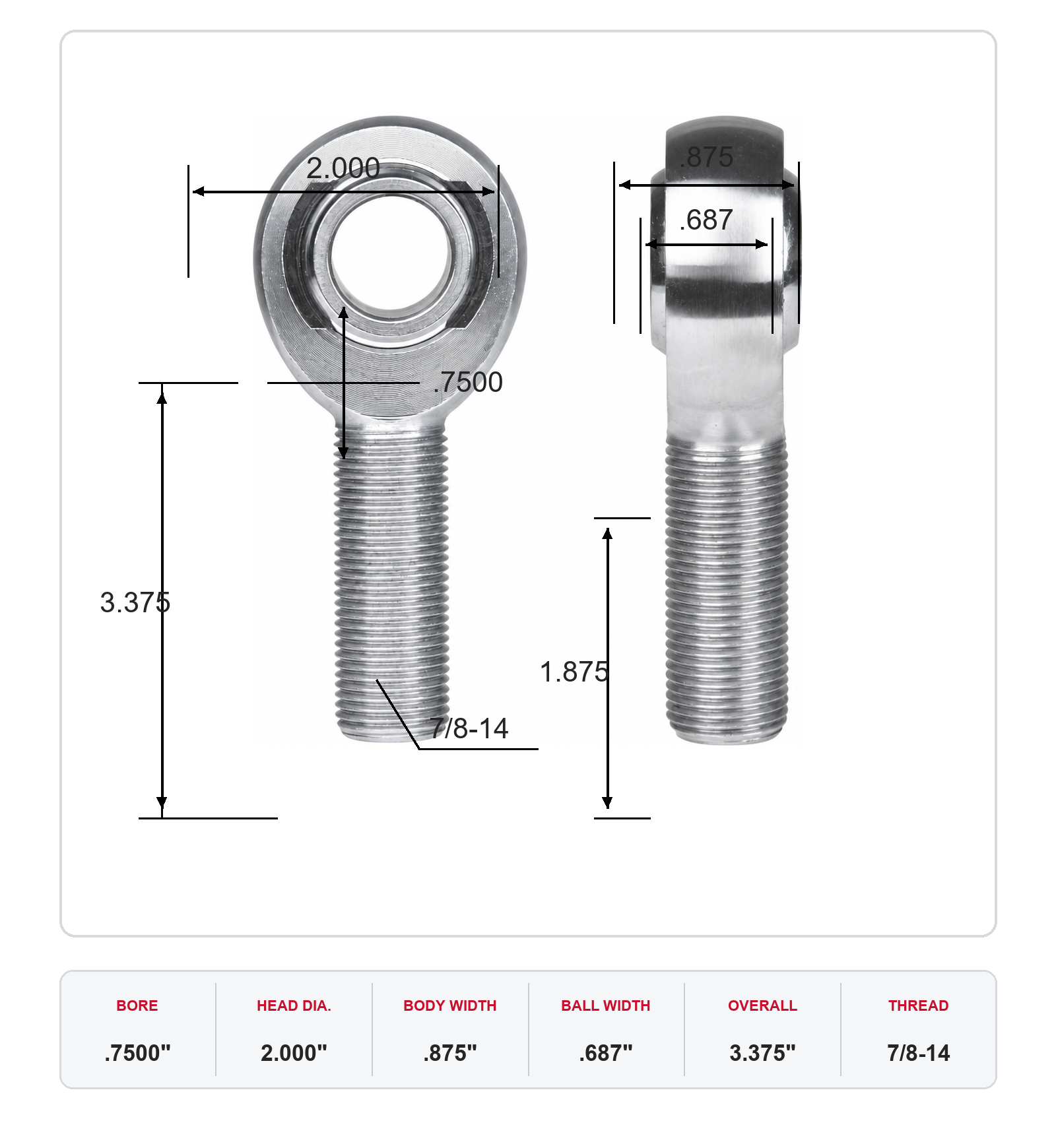

Right Hand 7/8"(shaft size) x 3/4" (Head Size) Heim Joint
PRODUCT DETAILS
- Includes 1-right hand thread Heim Joint and Jam nut.
- 7/8” 14tpi Thread
- Optional Misalignment spacers fit 5/8" standard bolts (Grade 8 or better recommended)
- 2" mounting width with spacers
- Optional Tube adapters fit 1.25" ID tube (inside diameter)
- 1-piece design Heat Treated steel
- Never needs grease
- 32,000 Pound static load rating
- The mounting width is 2"
They are heat-treated and hard chrome plated for a superior, long-lasting finish.
The race features Teflon-impregnated nylon, ensuring exceptional durability.
These rod ends come with a 7/8” shaft and 14 TPI (threads per inch).
The 3/4” bore provides the strongest configuration for this heim joint.
Optional zinc-coated misalignment spacers reduce the bore size to fit a 5/8” standard bolt.
The included jam nut is also zinc-coated for enhanced durability.
Additionally, a 1.25” ID tube adapter is optional, ensuring a snug fit in any 1.25” ID tube.
These joints from HeimJoints.net are ideal for rock crawlers, Jeeps, Toyotas, buggies, or any custom project.
They are commonly used for steering and link joints in hot rods, drag racing, 4-link setups, lowriders, or custom builds.
