Includes 1-Left hand thread Heim Joint and Jam nut.
7/8” 14tpi Thread
Optional Misalignment spacers fit 5/8" standard bolts (Grade 8 or better recommended)
2" mounting width with spacers
Optional Tube adapters fit 1.25" ID tube (inside diameter)
1-piece design Heat Treated steel
Never needs grease
32,000 Pound static load rating
The mounting width is 2"

They are heat-treated and hard chrome plated for a superior, long-lasting finish.

The race features Teflon-impregnated nylon, ensuring exceptional durability. These heim joints come with a 7/8” shaft and 14 TPI (threads per inch). The 3/4” bore provides the strongest configuration for this tie rod end. Optional zinc-coated misalignment spacers reduce the bore size to fit a 5/8” standard bolt. The included jam nut is also zinc-coated for enhanced durability. Additionally, a 1.25” ID tube adapter is optional, ensuring a snug fit in any 1.25” ID tube.

These heim joints from HeimJoints.net are ideal for suspension kits on rock crawlers, Jeeps, Toyotas, buggies, or any custom project. They are commonly used for steering kits, traction bars, and suspension components in hot rods, drag racing, 4-link setups, lowriders, or custom builds.

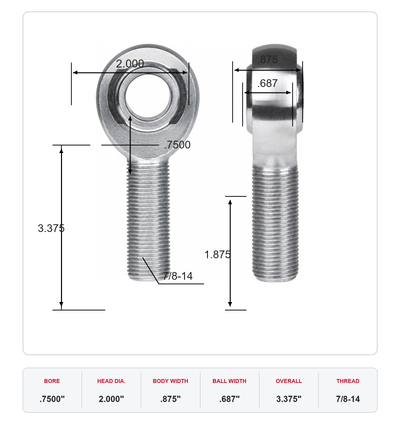

Left Hand 7/8"(shaft size) x 3/4" (Head Size) Heim Joint
