Benefits of your new heim joints.

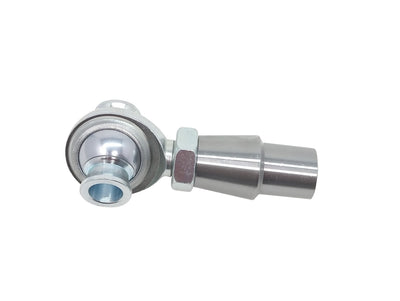

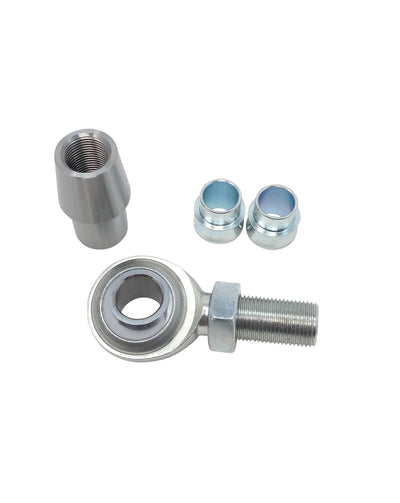

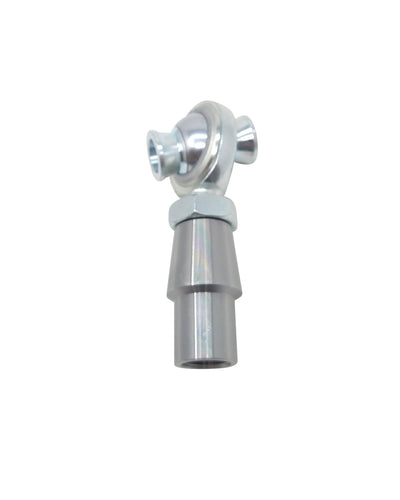

Includes 1-left hand thread Heim set. Spacers Jam nut and tube adapter included.
3/4” 16tpi LH (reverse) Thread
Misalignment spacers fit 5/8" standard bolts (Grade 8 or better recommended)
1 7/8" mounting width.
Tube adapters fit 1.00" ID tube (inside diameter)
2-piece design zinc plated steel
Never needs grease
13,000 Pound static load rating
Mounting width is 1-7/8"

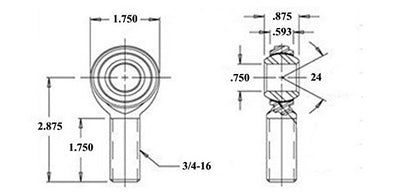

These rod ends have a 3/4” Shaft with 16tpi.
The 3/4” bore is the strongest way to make this heim.

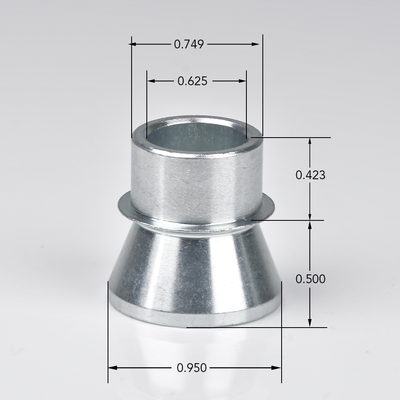

The included zinc-coated misalignment spacers reduce that down to a 5/8” standard bolt.
The included jam nut is zinc coated for superior durability.

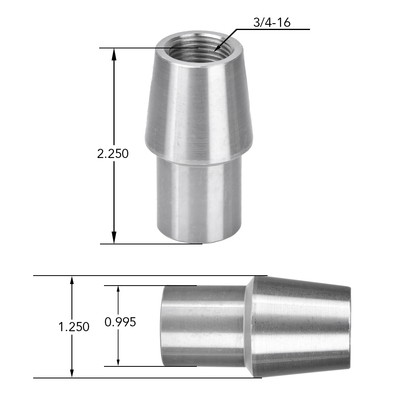

Also included is the 1” ID tube adapter.
They will fit snugly in any 1” ID tube.

These HeimJoints.net joints area great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.

ECM 3/4" .750" Left hand (reverse) heim joint kit
