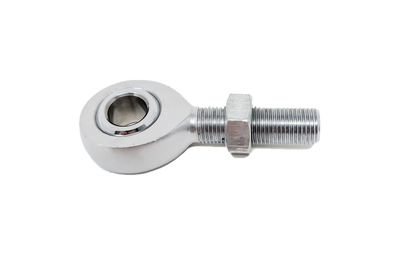

1/2" .500" Rod End Heim Joint

Includes 1-left hand thread and 1-Right Hand thread Heim set. Spacer Jam nut included.
1/2” 20tpi Thread

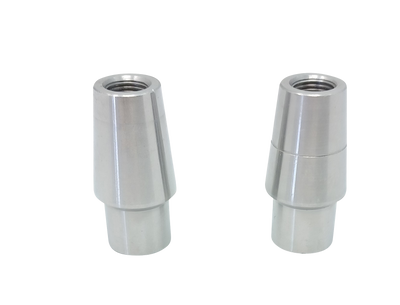

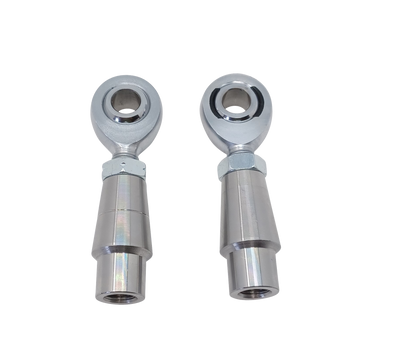

Optional tube adapter fits tube with an ID of .800"
1/2" bolt hole (Grade 8 or better recommended)
1-piece design Heat Treated steel
Never needs grease
16,000 Pound static load rating
Male thread
Thread length 1.5"

These XM heim joints are great quality. They are heat treated and hard chrome plated to give you a better finish for longer.
The race is teflon impregnated nylon for superior durability.
These rod ends have a 1/2"” Shaft with 20tpi.
The 1/2” bore is the strongest way to make this heim.

The included jam nut is zinc coated for superior durability.

These HeimJoints.net joints area great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.

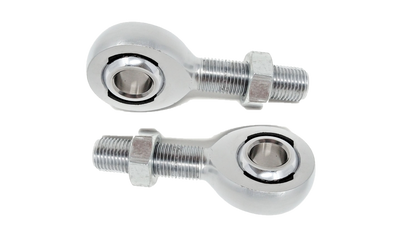

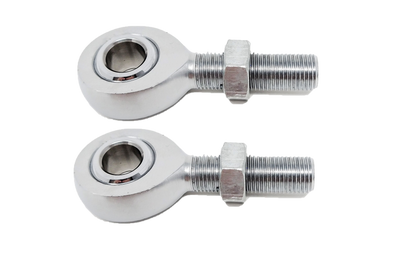

.500" 1/2" Rod End Heim Joint Right and Left (2 joints)
