Benefits of your new heim joints.

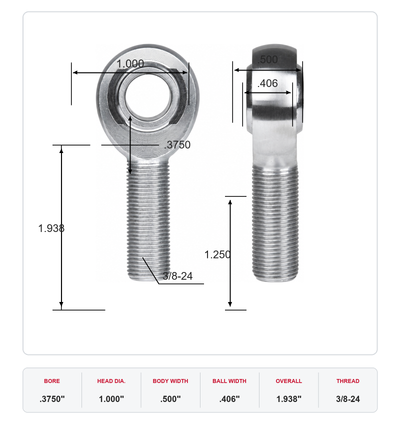

Includes 1-right hand thread (normal) and jam nut
3/8" 24tpi thread
3/8" bore (bolt hole)
.500" mounting width.
1-piece design Heat Treated steel
Nylon/PTFE race
Never needs grease
9500 Pound static load rating
Optional tube adapter fits .750" ID tube

They are heat-treated and hard chrome plated to give you a better finish for longer.

The race is Teflon impregnated nylon for superior durability.
These rod ends have a 3/8” Shaft with 24tpi.

The 3/8” bore is the strongest way to make this heim.

The included jam nut is zinc coated for superior durability.

These HeimJoints.net joints area great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.
Common uses are carb linkage or shifter linkage. Support rods or adjustment rods. XM6

3/8" heavy duty heim joints with nut Right Hand (normal) thread
