Benefits of your new heim joints.

3/4 thread-5/8 Bore Heim Joint Kit includes left and right heim joints, left and right tube adapters, misalignment spacers for 1/2" bolt and jam nuts making it perfect for custom suspension kits or steering kits
3/4” 16tpi Thread
Misalignment spacers fit 1/2" standard bolts (Grade 8 or better recommended)
1.250" 1-1/4" mounting width.
Tube adapters fit 1.00" ID tube (inside diameter)
1-piece design Heat Treated steel
Never needs grease
25,000 Pound static load rating
Mounting width is 1-1/2"
This versatile kit is ideal for various applications, including tie rod ends, traction bars, and suspension components like the 4-link kits utilized by many custom car builders
Whether youre upgrading steering and suspension systems or building a robust panhard bar kit, these heim joints offer superior performance in your custom creation
The race is Teflon impregnated nylon for superior durability.
These rod ends have a 3/4” Shaft with 16tpi.
The 5/8” bore is useful in many applications, steering, or suspension.

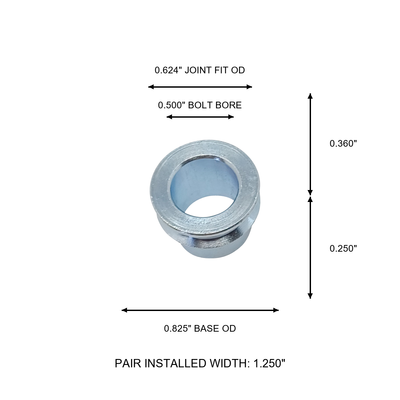

The included zinc-coated misalignment spacers reduce that down to a 1/2” standard bolt.
The included jam nut is zinc coated for superior durability.

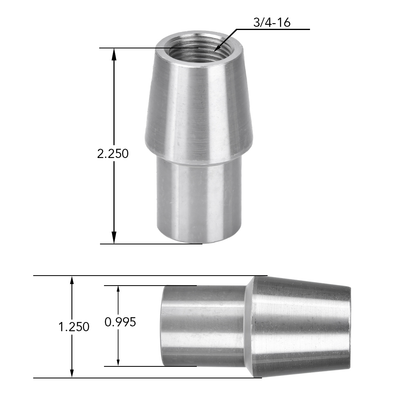

Also included is the 1” ID tube adapter.
They will fit snugly in any 1” ID tube.

These HeimJoints.net joints area great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.

3/4-16 (thread) X 5/8 (hole, bore) Heim Joint kit, Left and right threads
