Includes 1-Left hand thread Heim set. Spacer Jam nut and tube adapter included.
1.25” 12tpi Thread Left Hand (reverse)
1-piece design Heat Treated steel
2 5/8" mounting width
Misalignment spacers fit 3/4" standard bolts (Grade 8 or better recommended)
Never needs grease
76,000 Pound load rating
Tube adapters fit 1.5" ID tube (inside diameter)
The strongest joint that we offer

They are heat-treated and hard chrome plated to give you a better finish for longer. The race is teflon impregnated nylon for superior durability. These rod ends have a 1.25” Shaft with 12tpi.

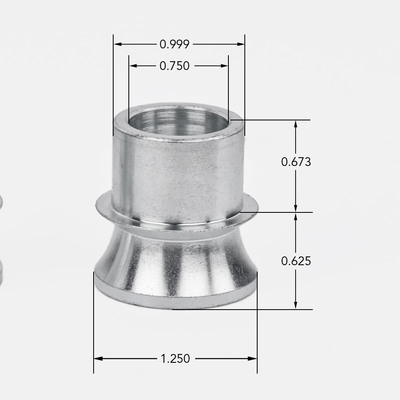

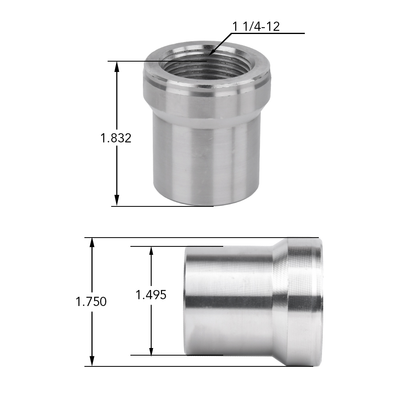

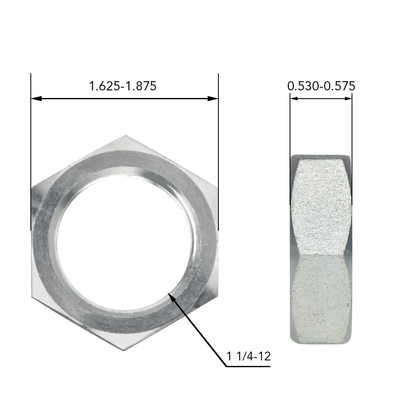

The 1” bore is the strongest way to make this heim. The included zinc-coated misalignment spacers reduce that down to a 3/4” standard bolt. The included jam nut is zinc coated for superior durability. Also included is the 1.5” ID tube adapter. They will fit snugly in any 1.5” ID tube.

These HeimJoints.net joints area great fit for your rock crawler Jeep Toyota Buggy or any project you may be building.
Common uses are steering joints and link joints on hot rods drag racing 4-link lowrider or custom builds.

1.25” Rod End Heim Joint KIT LEFT hand (reverse) thread
